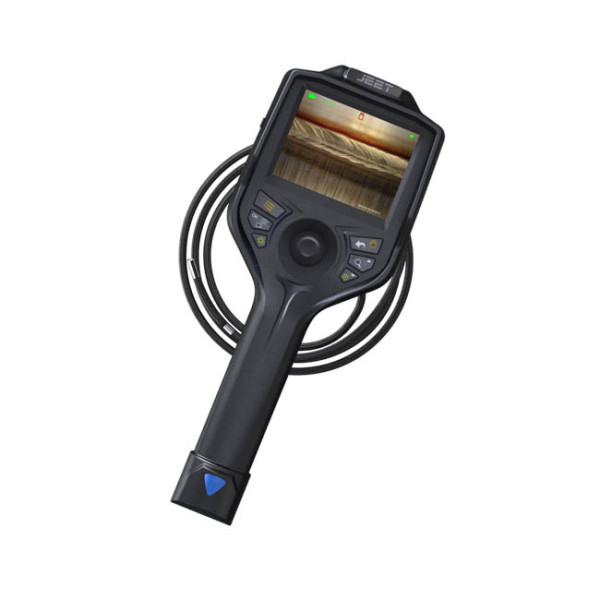

6.0MM T35H Front View Camera Endoscope
Detail Information
Interchangeable display
Independent module design for display screen and Tube, 3.5-inch and 5.1-inch display screens can be selected at will, and the operation is more intelligent and convenient.
Alarm
High Temperature alarm function: 1. Yellow alarm when the temperature of testing environment is above 70℃; 2. Orange alarm when the temperature is above 80℃; 3. Red alarm and shutdown when the temperature is more than 90℃.
Output
Camera and video 1080P, 450 thousland, 1 million, 2 million pixels are optional; support HD video recording, high definition display, picture resolution up to 1920*1080.
Real-Time Zooming
In preview mode, it supports real-time zooming, and the defect inspection is more intuitive.
High Definition Display
Camera and video 1080P, 450 thousland, 1 million, 2 million pixels are optional; support HD video recording, high definition display, picture resolution up to 1920*1080.
Scale
Defect size measurement and comparison coordinate display, available for review, more accurate auxiliary judgement for defect detection.
Multifunctional insert tube
Articulation
360° all-way articulation, damping type positioning design, precise articulation locking technology, make the detection more accurate and efficient.
Wear Resistant Tube
5 layers of tungsten - braided tube; wear resistance; 20 times better than ordinary probe.
Bending
The maximum bending angle is up to 190℃.
Illuminance
With super bright ceramic LED, the illuminance can reach to 1000000 Lx.
Working Time
Original dual battery design, 8 hours working time, real-time battery indication.
Wifi
The image can be outputted to HD display by HDMI or Wi-Fi.
Interchangeable Tube
It is compatible with tubes from 3.8mm to 6mm diameter.
Packaging & Accessories
Multi-functional magnetic stand; Practical probe accessories to meet a variety of inspection requirements.
Quality Assurance
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Application
T-Series mega pixels industrial endoscope are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing, explosion-proof detection, etc.
6.0MM T35H Front View Camera Endoscope Parameters
|
Tube System
|
Probe Diameter(mm)
|
Φ6.0mm
|
|
Camera Pixels
|
1,000,000
|
|
|
DOF
|
5-80mm//10-100mm/50mm-∞
|
|
|
FOV
|
120°
|
|
Light Source | LED (optional: optic fiber) | |
Illuminance | It can be up to 100,000 Lx | |
Tube Length | 1.0m/2.0m/3.0m/4.0m/5.0m/6.0m/7.0m/8.0m (customized for other length) | |
Protecting Device of Durability | 42mm buffer protection device between tube and handle | |
Articulation | 360° joystick control | |
Bending Angle | Maximun:190°（8m tube:100°） | |
Probe Positioning | Damping positioning (optional: articulation lock device) | |
Monitor System | Display | 3.5 inches TFT LCD |
Image Resolution | 1280×720 | |
Language | English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean /Polish / Latvian | |
Outer Case Material | Anti-fall engineering alloy material | |
IP Level | Probe/tube: IP67 | |
Temperature Indication | High temperature alarm(optional） | |
Structure | Hand-held integrated design | |
Image/Video Format | JPEG/MOV | |
Data Port | HDMI video output, Micro USB port | |
Working Time | ≥8h | |
Zoom In/Out | 4X | |
Battery Capacity | 3.7V，3200mAh×2 | |
Power Charge | DC5V，maximum current: 1A | |
Weight | 0.55Kg-0.8Kg | |
Compatibility | Interchangeable monitor and tube with different diameters | |
Storage | Standard TF card: 16G, Maximum: 32G | |
Power Supply | Detachable lithium batteries | |
Accessories | Standard Configuration | Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual |
